Safety valve

This valve is suitable for equipment or pipelines with steam, air and other environments at the operating temperature ≤ 350 ℃. As an overpressure protection device. Standard LBIT-94 Series Connection Flanges 1.

Keywords:

Hualida Valve

Included in the category:

Hydraulic Control Valve

Phone:

+86 15022758886

Mailbox:

hualidavalve@163.com

Products Message

Introduction

Main parts material

Serial number

Part Name

Material Name

Valve body

DSDP

Valve Seat

2Cr13

Adjustment wheel

ZG2Cr13

Return roll-back disc

ZG2Cr13

Valve

2Cr13

Guide bushing

2Cr13

Valve cover

ZG230-450

Spring

50 B.C.E.

Valve stem

2Cr13

Wrench

ZG200-400

Screw adjustment

Protective Cover

ZG200-400

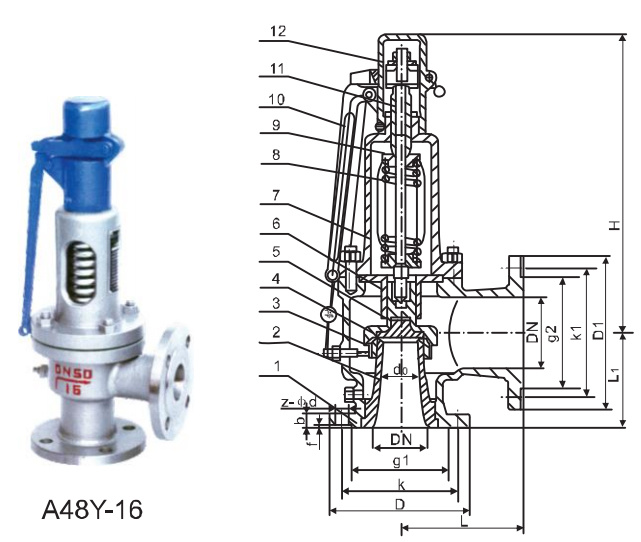

Main Size Chart

PN (MP)	DN (Mm)	D0	D	К	G1	B	F	Z-d	D1	К 1	G2	L	L1	H
1,6	20	15	105	75	55	16	2	4-Φ14	115	85	65	110	95	411
	25	16	115	85	65	16	2	4-Φ14	140	100	78	110	95	411
	32	20	140	100	78	18	2	4-Φ18	150	110	85	115	100	411
	40	25	150	110	85	18	3	4-Φ18	165	125	100	120	110	472
	50	32	165	125	100	20	3	4-Φ18	185	145	120	135	120	532
	65	40	185	145	120	20	3	4-Φ18	200	160	135	160	140	556
	80	50	200	160	135	20	3	8-Φ18	220	180	155	170	155	561
	100	65	220	180	155	20	3	8-Φ18	250	210	185	195	175	667
	125	80	250	210	185	22	3	8-Φ18	285	240	210	210	190	857
	150	100	285	240	210	24	3	8-Φ23	310	270	240	255	230	915
	200	125	340	295	265	26	3	12-Φ23	405	355	320	300	260	1073
	250	150	405	355	320	30	3	12-Φ26	460	410	375	350	320	1307
	300	220	460	410	375	30	4	12-Φ26	580	525	485	370	350	1233
	350	250	520	470	435	34	4	16-Φ26	715	650	608	500	450	1711
	400	280	580	525	485	36	4	16-Φ30	715	650	608	500	450	1780
2,5	20	15	105	75	55	16	2	4-Φ14	115	85	65	110	95	411
	25	16	115	85	65	16	2	4-Φ14	140	100	78	110	95	411
	32	20	140	100	78	18	2	4-Φ18	150	110	85	115	100	411
	40	25	150	110	85	18	3	4-Φ18	165	125	100	120	110	472
	50	32	165	125	100	20	3	4-Φ18	185	145	120	135	120	532
	65	40	185	145	120	22	3	8-Φ18	200	160	135	160	140	556
	80	50	200	160	135	22	3	8-Φ18	220	180	155	170	155	561
	100	65	230	190	160	24	3	8-Φ23	250	210	185	195	175	667
	125	80	270	220	188	28	3	8-Φ26	285	240	210	210	190	857
	150	100	300	250	218	30	3	8-Φ26	310	270	240	255	230	915
	200	125	360	310	278	34	3	12-Φ26	405	355	320	300	260	1073
	250	150	425	370	332	36	3	12-Φ30	460	410	375	350	320	1307
	300	200	485	430	390	40	4	16-Φ30	580	525	485	370	350	1233
	350	250	555	490	448	44	4	16-Φ34	715	650	608	500	450	1711
	400	280	620	550	505	48	4	16-Φ36	715	650	608	500	450	1780
