The product consists of an inner rubber layer, a nylon curtain, a rubber sphere with an outer rubber layer and a metal flange of a pine sleeve.

Keywords:

Hualida Valve

Included in the category:

Hydraulic Control Valve

Phone:

+86 15022758886

Mailbox:

hualidavalve@163.com

Products Message

Introduction

The product consists of an inner rubber layer, a nylon curtain, a rubber sphere with an outer rubber layer and a metal flange of a pine sleeve. It has the characteristics of high pressure resistance, good elasticity, large displacement, absorption and noise reduction, flexible installation, etc. D. It can be widely used in piping systems, such as water supply and drainage, heating, ventilation and air conditioning system, paper making, petrochemical vessels, compressors, water pumps, fans, etc. D.

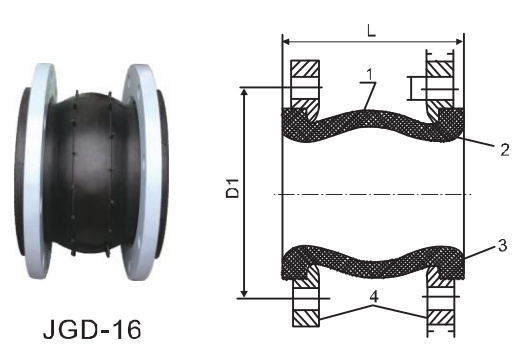

Main components and materials

Serial number

Place

Material

Subject

Polar Rubber

Lining

Nylon Curtain

Skeleton

Solid Steel Wire

Flange

Low Carbon Steel

Performance specification

Model	Working pressure MP (kgs/cm²)	Explosion pressure MPa (kg. f/cm2)	Vacuum Q7 (mm Hg. Art.)	Applicable temperature ℃	Applicable media
JGD (1)	1,6	4,8	100(750)	-20 ~ 115 Special pre-30 250	Air, Compressed Air, Water, Sea Water, Hot Water, Shan, Acid Chemicals such as alkali
JGD (II)	1,0	3,0	86,7 (650)
JGD(II)	0,6	1,8	53,3 (400)

Main Size Chart

DN (mm)	Dlin L Mm	Axial displacement mm		Radial displacement (mm) D (mm)	Angle deviation A, a)	The pressure level corresponds to the size of the flange hole center
		Elongation	Compression			0.6 MP	1.0 MPs	1.6 MP	2.5 MP
32	95	6	9	9	150	90	100	100	100
40	95	6	10	9	150	100	110	110	110
50	105	7	10	10	150	110	125	125	125
65	115	7	13	11	150	130	145	145	145
80	135	8	15	12	150	150	160	160	160
100	150	10	19	13	150	170	180	180	190
125	165	12	19	13	150	200	210	210	220
150	180	12	20	14	150	225	240	240	250
200	210	16	25	22	150	280	295	295	310
250	230	16	25	22	150	335	350	355	370
300	245	16	25	22	150	395	400	410	430
350	255	16	25	22	150	445	460	470
400	255	16	25	22	150	495	515	525
450	255	16	25	22	150	550	565	585
500	255	16	25	22	150	600	620	650
600	260	16	25	22	150	705	725	770
700	320	16	25	22	150	810	840	840
800	340	16	25	22	150	920	950	950
900	370	16	26	22	150	1020	1050	1050
1000	400	18	26	24	150	1120	1160	1170
1200	420	18	28	24	150	1340	1380	1390
1400	456	20	28	26	150	1560	1590
1600	500	20	28	26	150	1760	1820
1800	550	20	35	40	150	1970	2020
2000	550	25	35	40	150	2180	2230
2200	550	25	35	30	150	2390
2400	550	25	35	30	150	2600
2600	550	25	35	30	150	2810
2800	550	25	35	30	150	3020
3000	550	25	35	30	150	3220
